Industrial Machines: Bio-Press
Industrial machine to separate fibers from animal waste and organic matter
-
![]()
Industrial Bio-press
It is a plunger-piston mechanism to separate the liquid from moist fibrous material. The solid part is squeezed using compression and cut into small pieces known as “Pellets” or “Briquets”, while the liquid part is collected and accumulated in a reservoir.
-
![]()

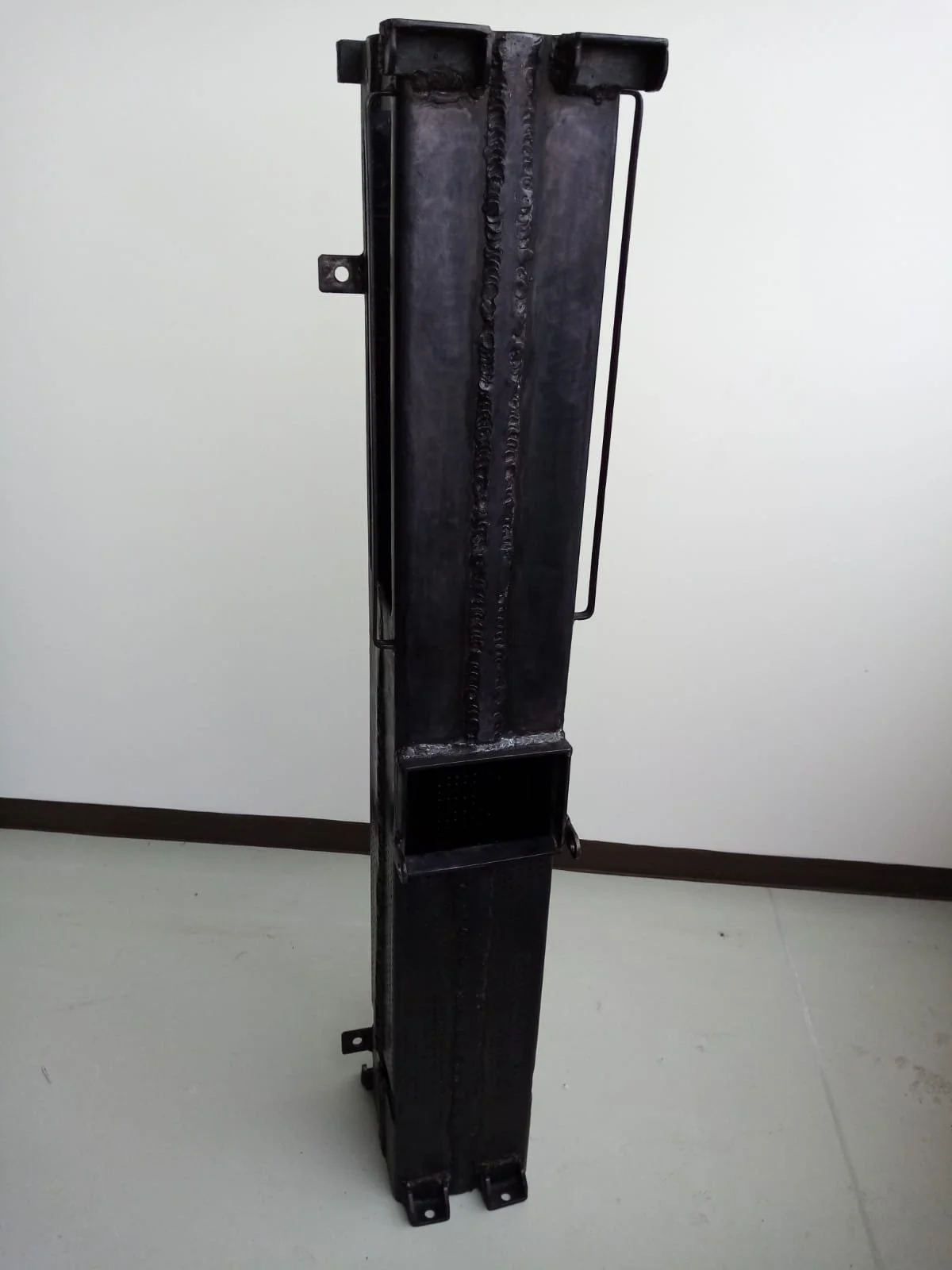

Compression chamber
The compression chamber is the main body of the Bio-press; it holds the feeder, the electrical motor, and the piston.
-
![]()

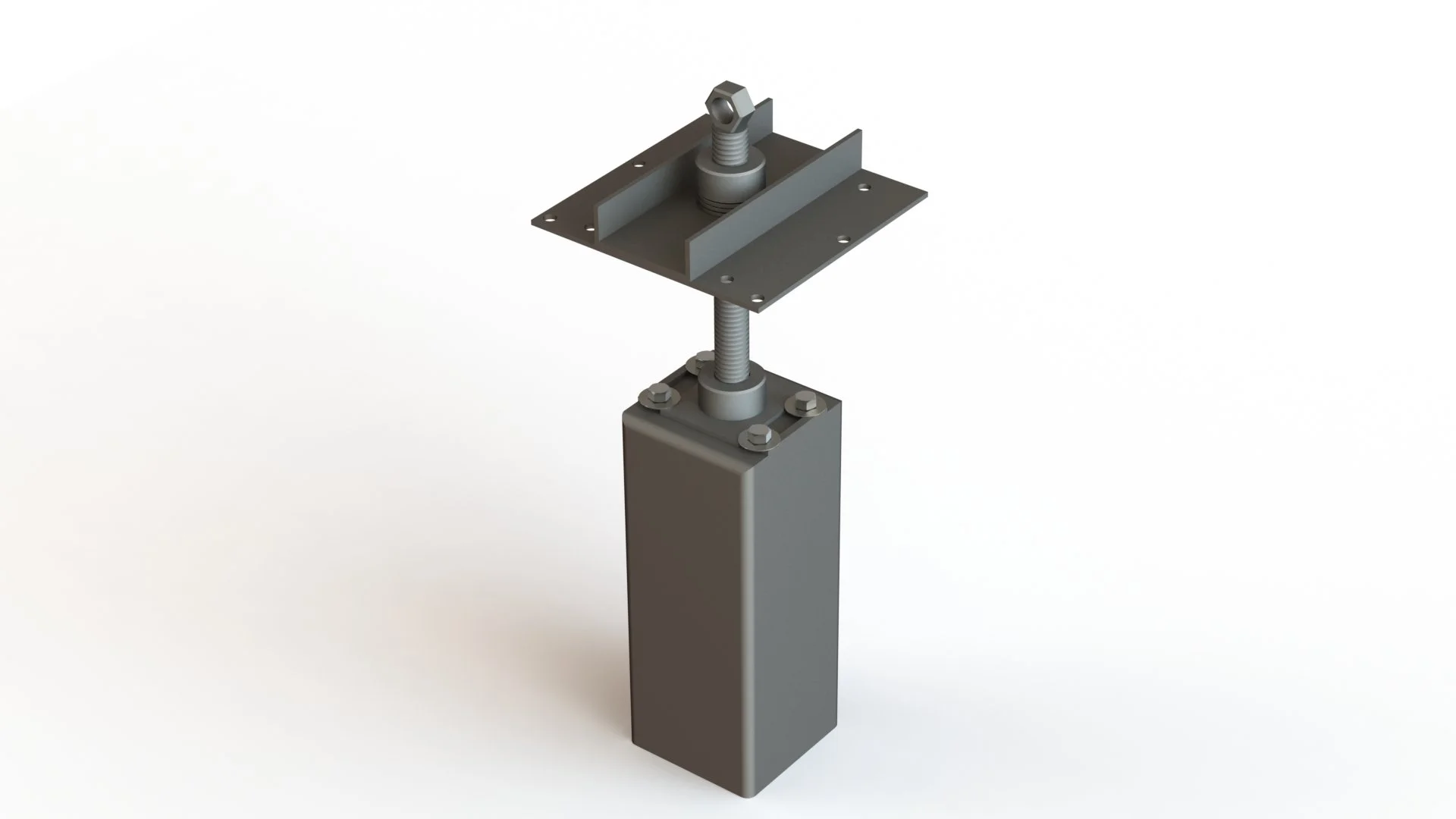

Piston and power screw
Compression piston with 50 cm stroke. and work volume of
9,000 cm^3
-
![]()

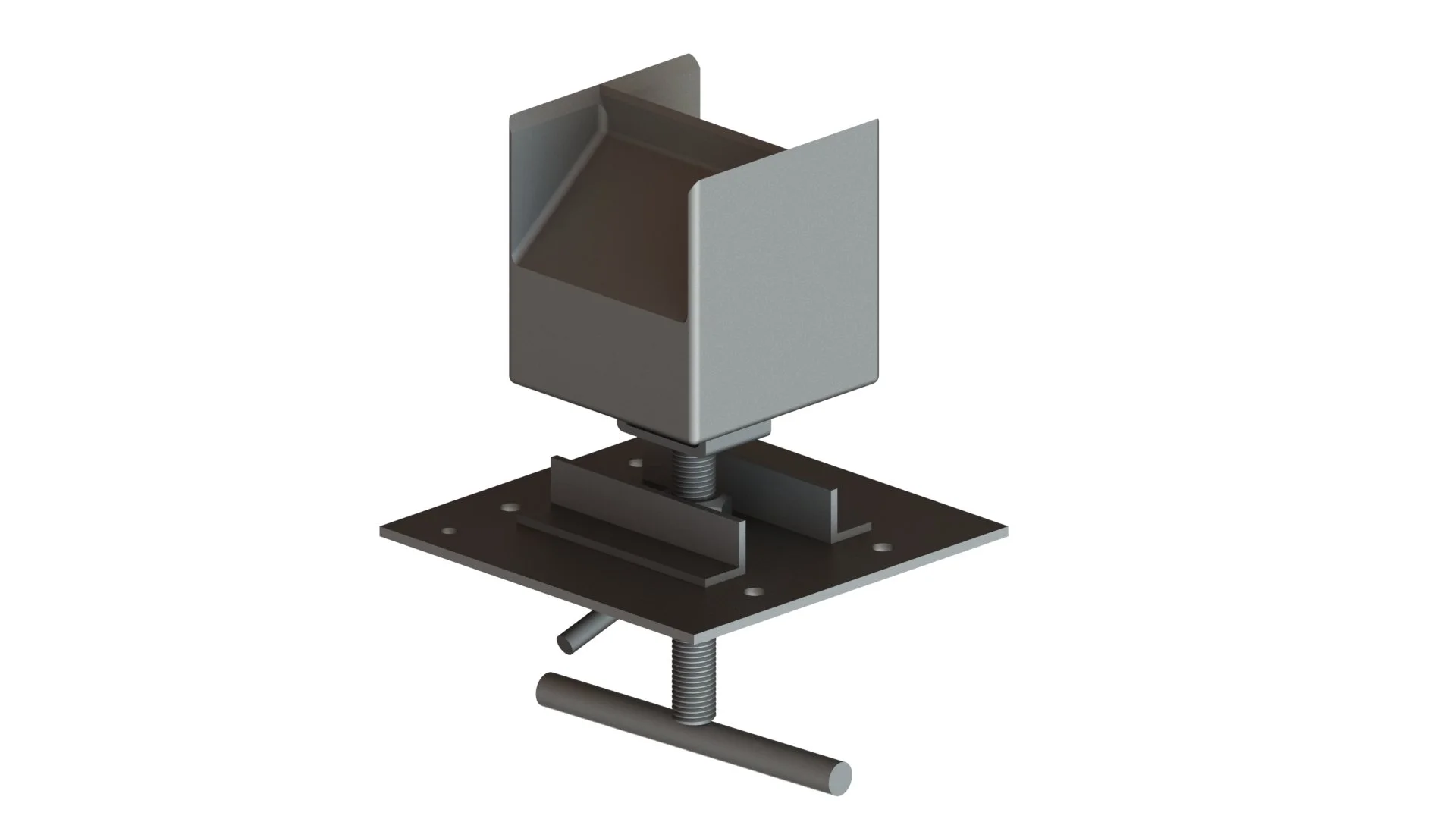

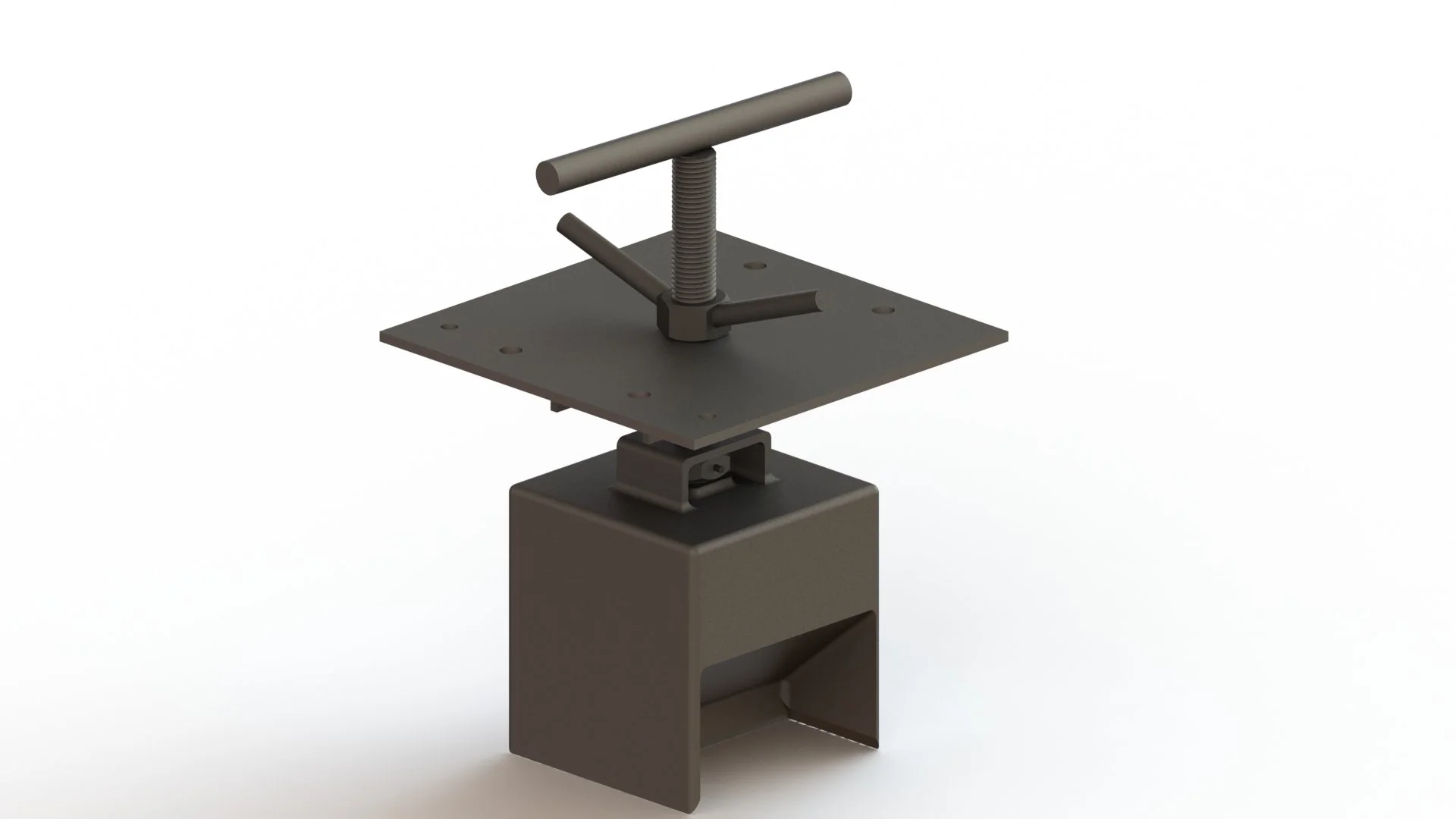

Extrussion die
Extrusion die with cutting edges for pelletizing the compressed fibers
Specifications
• Electric motor: 600 watts, 110 v. A.C., 60 hz.
• 15-liter feeding hopper.
• working volume of the compression box: 9,000 cm3.
• Maximum working volume: 36 liters per hour (with Work Cycle at 33%).
• Maximum work volume per day: 288 liters (with Work Cycle at 33%)
• Weight of the mechanism: 160 kg.
• Compression capacity (designed): 500 kg.
• Compression capacity (maximum): 750 kg.
Bio-press motion
The Bio-press is a plunger-piston mechanism to separate the liquid from moist fibrous material. The solid part is squeezed using compression and cut into small pieces known as “Pellets” or “Briquets”, while the liquid part is collected and accumulated in a reservoir. Cutting and pelletizing die with variable output that allows working with different solid/liquid ratios in the input material and with different fiber characteristics.

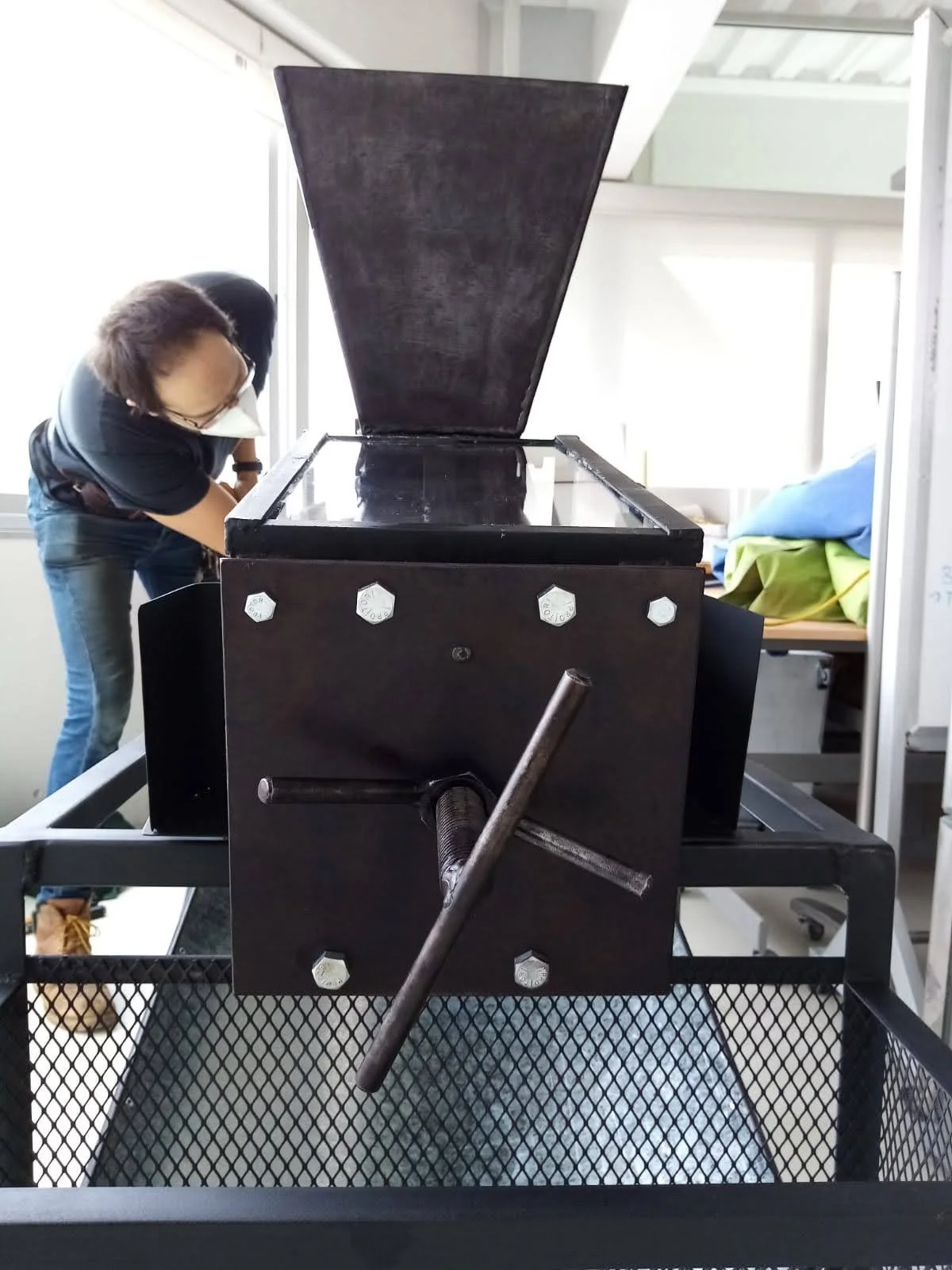

Assembly
